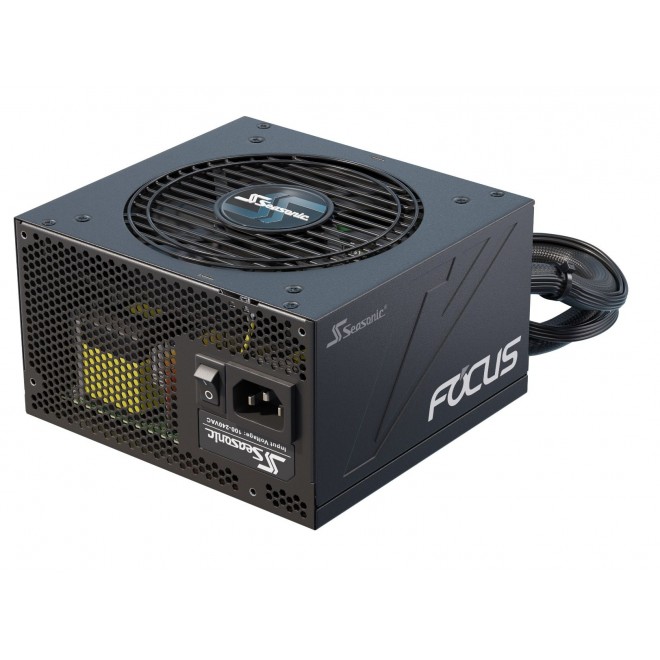

SeaSonic 850W FOCUS GM-850 Gold PSU (SSR-850FM) (OneSeasonic)

Sku: PSUSEAFOCUSGM850

 Availability: In stock

Details

FEATURE SUMMARY

  • 80 PLUS® Gold certified
  • Semi-Modular Cables
  • Compact Size - 140 mm deep
  • Tight Voltage Regulation
  • Cable-free Connection Design
  • S2FC - Smart and Silent Fan Control
  • DC to DC Converter Design
  • Multi-GPU setup
  • Gold plated connectors
  • 7 years warranty
  • Specifications

    Technical Specifications
    80PLUS® Gold
    Form Factor Intel ATX 12 V
    Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
    Fan Information Fan Size 120 mm
    Fan Control S2FC
    Fan Bearing Fluid Dynamic Bearing
    Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
    Cable Information Modularity Semi-modular
    Cable type Webbed cables (attached)
    Flat black cables(modular)
    Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
    MTBF @ 25 °C, excl. fan 100,000 hours
    AC Input Full Range
    Protection OPP, OVP, UVP, OCP, OTP, SCP
    Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
    Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
    Warranty 7 Years
    Power Output
    AC Input Voltage: 100 V - 240 V
    Current: 12 - 6 A
    Frequency: 50 Hz - 60 Hz
    DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
    Maximum Power 20 A 20 A 70 A 0.3 A 3 A
    100 W 840 W 3.6 W 15 W
    Total continuous power 850 W

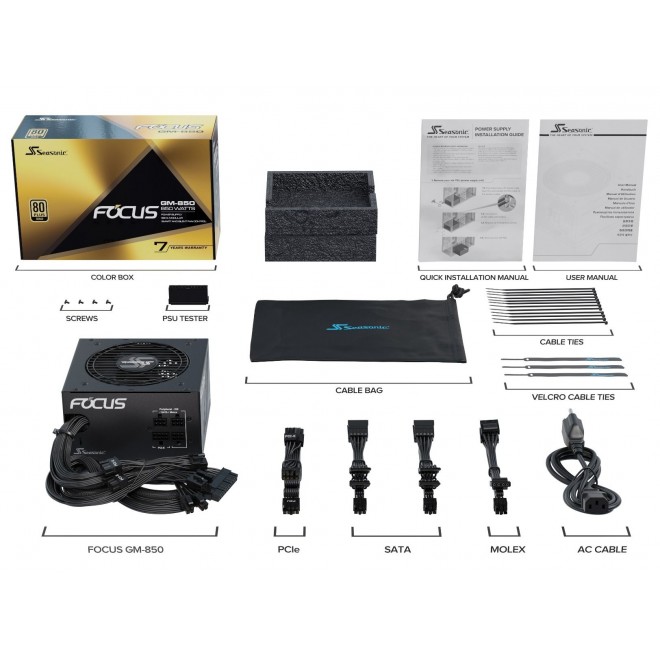

    Cables

    ConnectorConnector countCable countCable
    Main Power (24/20 pins) 1 1 MB 610 mm
    CPU (8/4 pins) 1 1 CPU 650 mm
    PCIe (8/6 pins) 6 0 PCIe 750 mm
    3 PCIe 675 + 75 mm
    SATA 8 2 SATA 450 + 120 + 120 + 120 mm
    0 SATA 350 + 150 + 150 + 150 mm
    0 SATA 400 + 120 + 120 + 120 mm
    0 SATA 450 + 120 mm
    0 SATA 350 + 120 mm
    0 SATA 300 + 120 mm
    Peripheral 3 1 Peripheral 450 + 120 +120 mm
    0 Peripheral 350 + 120 mm
    Floppy 0 0 Floppy 101 mm

    Specifications are subject to change without prior notice.
