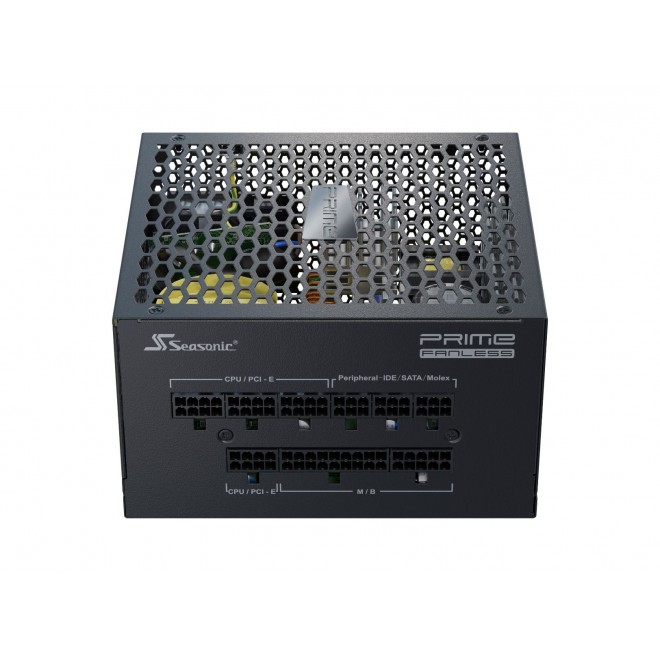

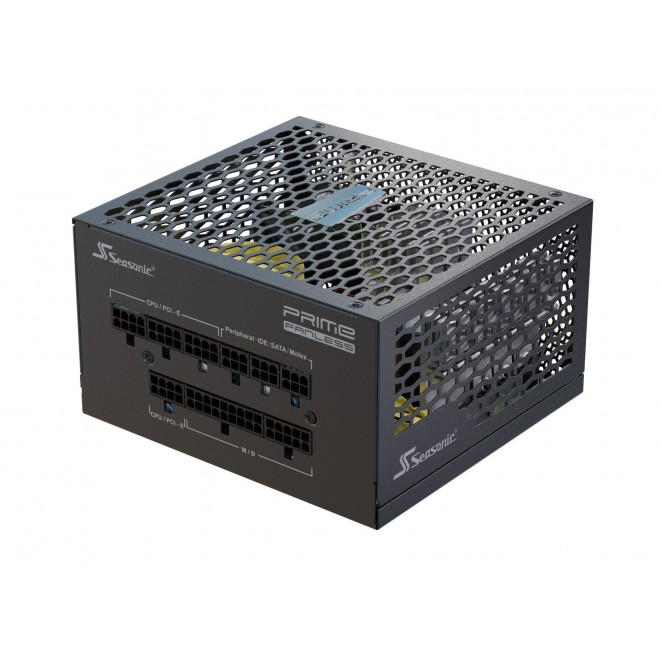

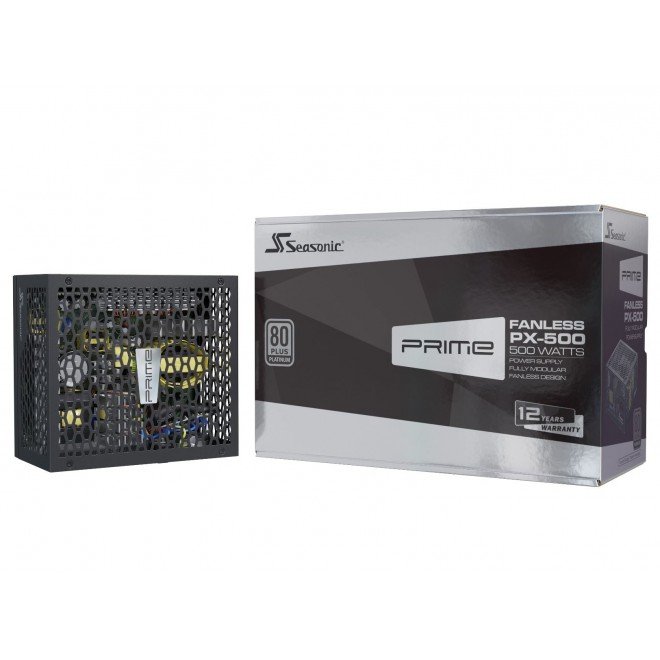

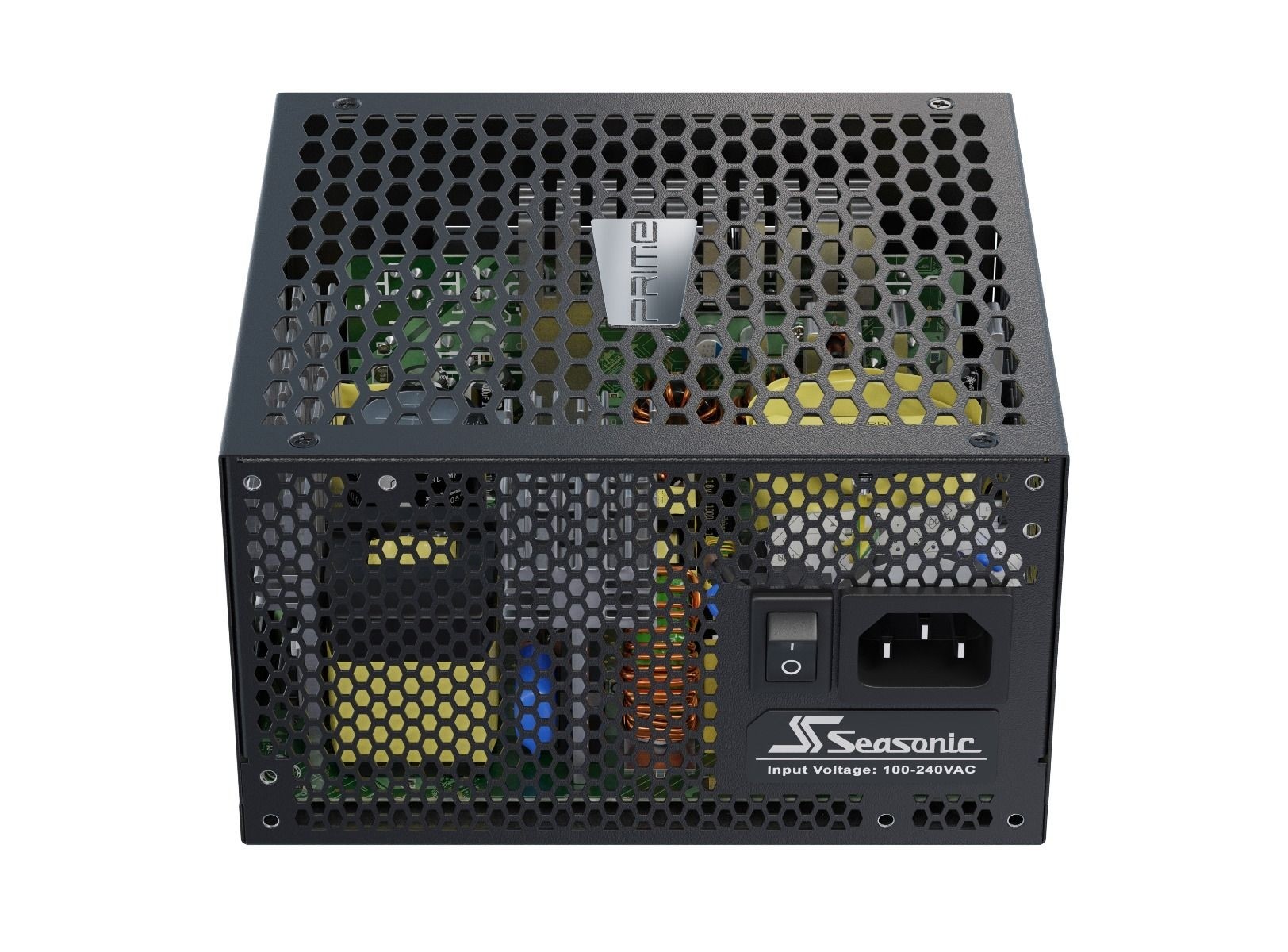

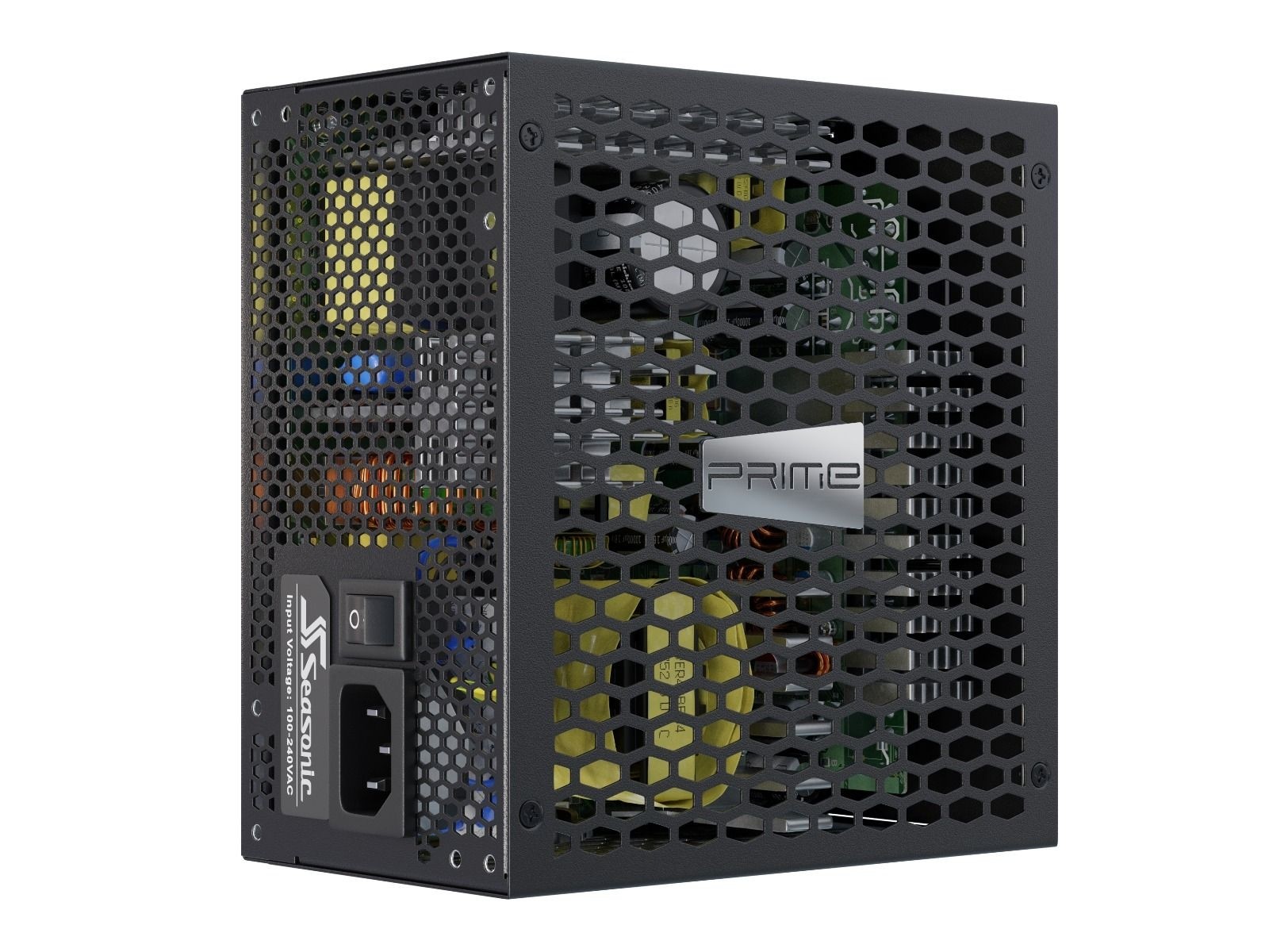

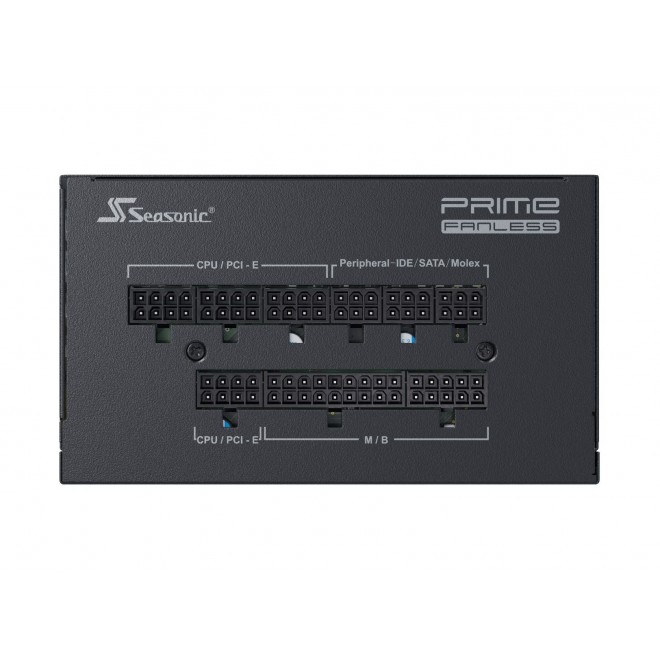

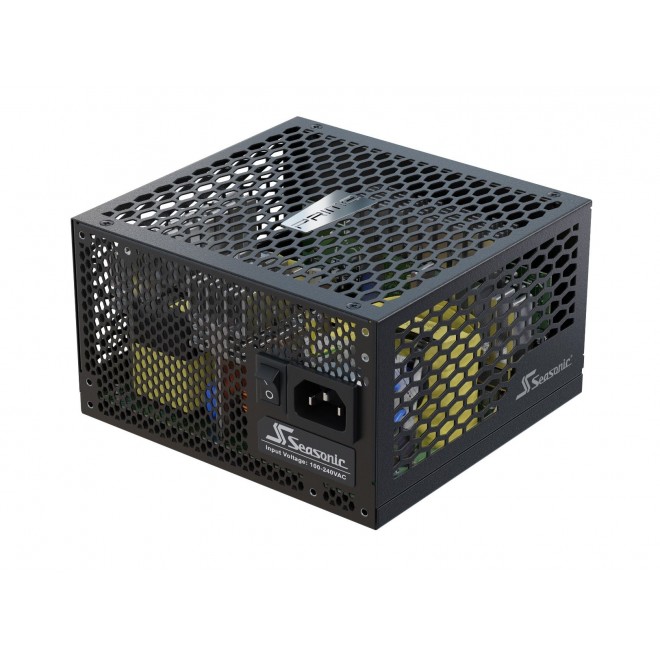

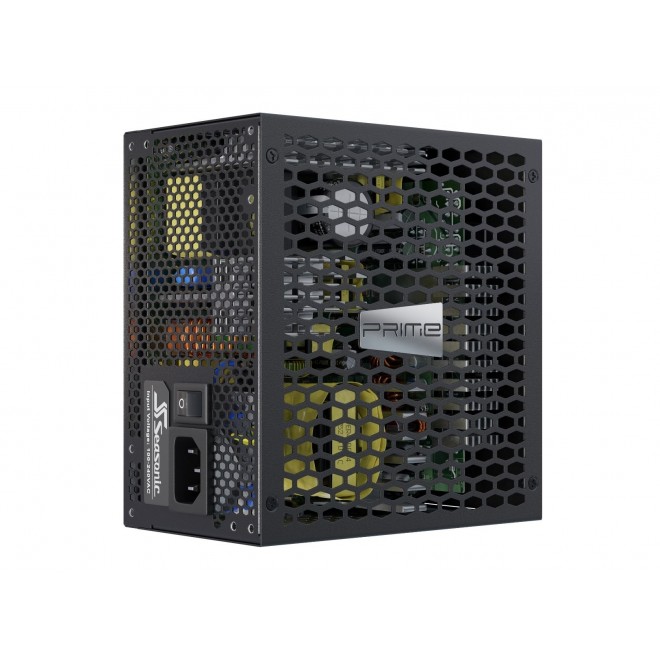

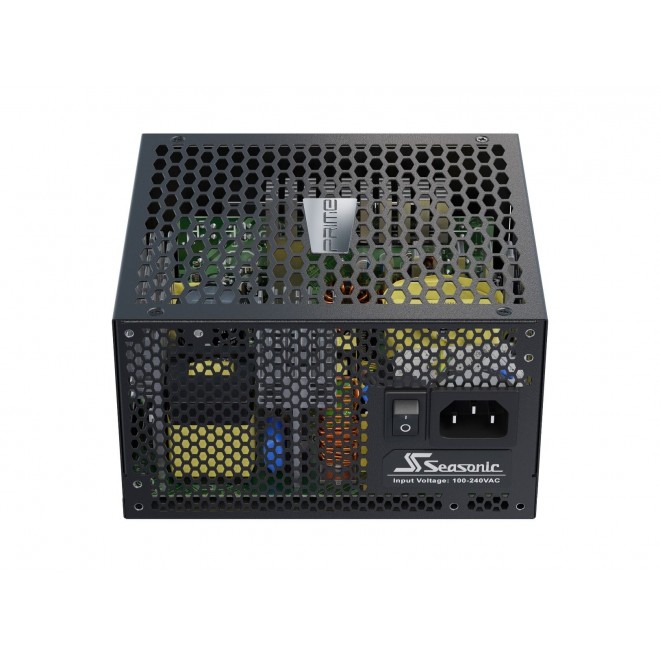

Seasonic Prime Fanless PX-500 500W Platinum PSU (SSR-500PL)

Sku: PSUSEAPX500

 Availability: In stock

Details

FEATURE SUMMARY
  • 80 PLUS® Platinum certified
  • Micro Tolerance Load Regulation (0.5%)
  • True Fanless Design
  • Multi-GPU setup
  • Gold plated connectors
  • 12 years warranty


  • Technical Specifications
    80PLUS® Platinum
    Cybenetics Efficiency LevelTBA
    Cybenetics Noise LevelTBA
    Form Factor Intel ATX 12V
    Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
    Fan Information Fan Size N/A
    Fan ControlN/A
    Fan BearingN/A
    Life Expectancy N/A
    Cable Information ModularityFully Modular
    Cable typeWebbed cables (MB, CPU, PCIe)
    Flat black cables
    Electrical Features Operating Temperature0 - 50°C (derating from 100% to 80% from 40°C to 50°C)
    MTBF @ 25 °C, excl. fan 150,000 hours
    AC InputFull Range
    ProtectionOPP, OVP, UVP, OCP, OTP, SCP
    Safety and Environmental Safety and EMCcTUVus, TUV, CB, CCC, BSMI, EAC, CE
    Environmental ComplianceEnergy Star, RoHS, WEEE, ErP Lot 6, REACH
    Warranty 12 Years

    Power Output
    AC Input
    Voltage: 100 V - 240 V
    Current: 7 - 4 A
    Frequency: 50 Hz - 60 Hz
    DC Output
    Rail
    +3.3 V
    +5 V
    +12 V
    -12 V
    +5 VSB
    Maximum Power
    20 A
    20 A
    41 A
    0.3 A
    3 A
    100 W
    492 W
    3.6 W
    15 W
    Total Continuous Power
    500 W
